1947-1965 Airstream Gaskets

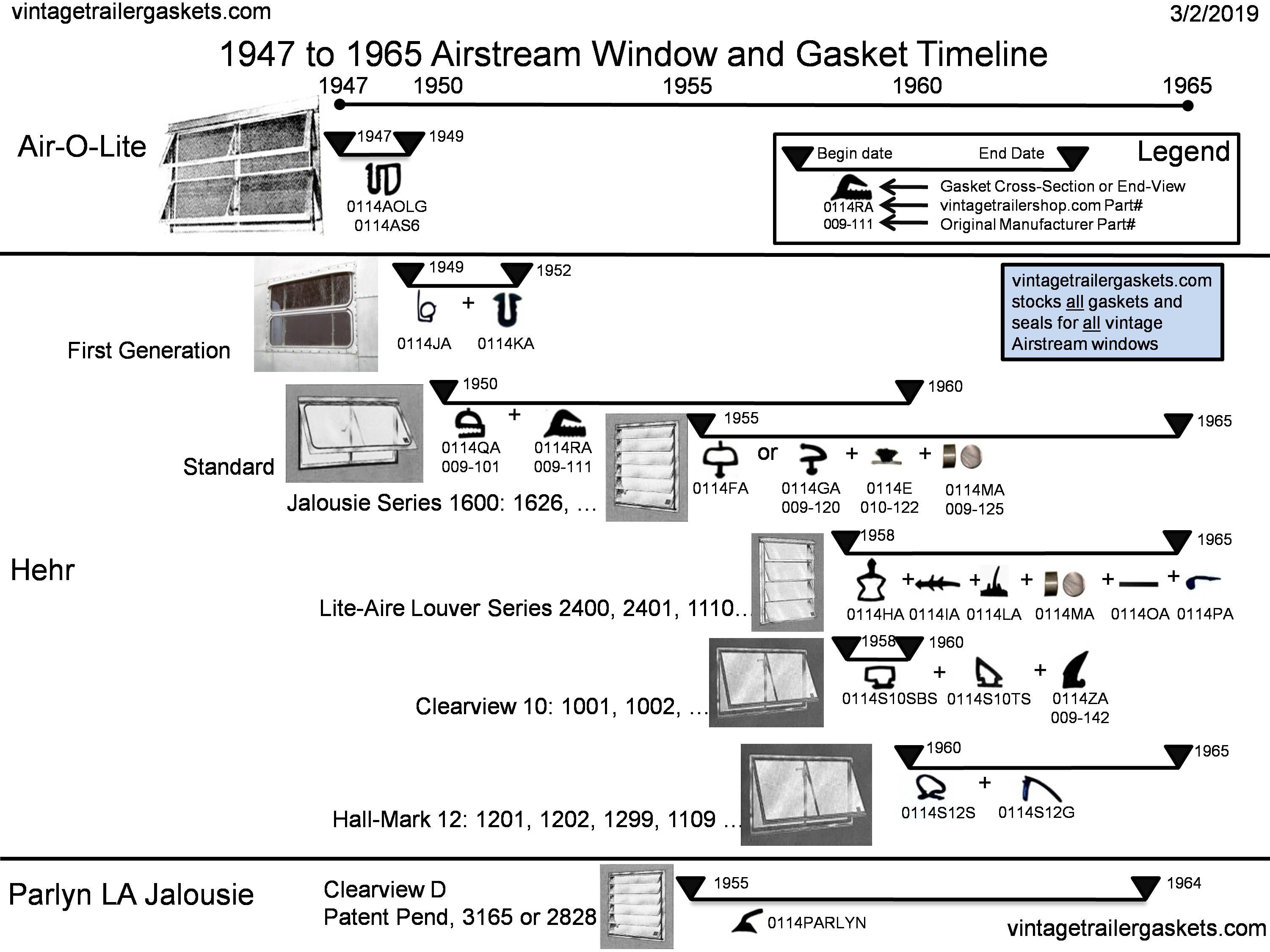

1948 to 1965 Vintage Airstream Windows1947 to 1965 Vintage Airstream Window Gasket Part NumbersAir-O-Lite Window RestorationHehr First Generation Window RestorationHerh 1600 Jalousie Window RestorationHehr Clearview 1000 Vintage Awning WindowHerh Hallmark 1200 Awning Window RestorationAirstream Parlyn Vintage Jalousie Window
Move cursor over image and click on right or left side arrows for slide show. Click on image top right corner for full screen image.

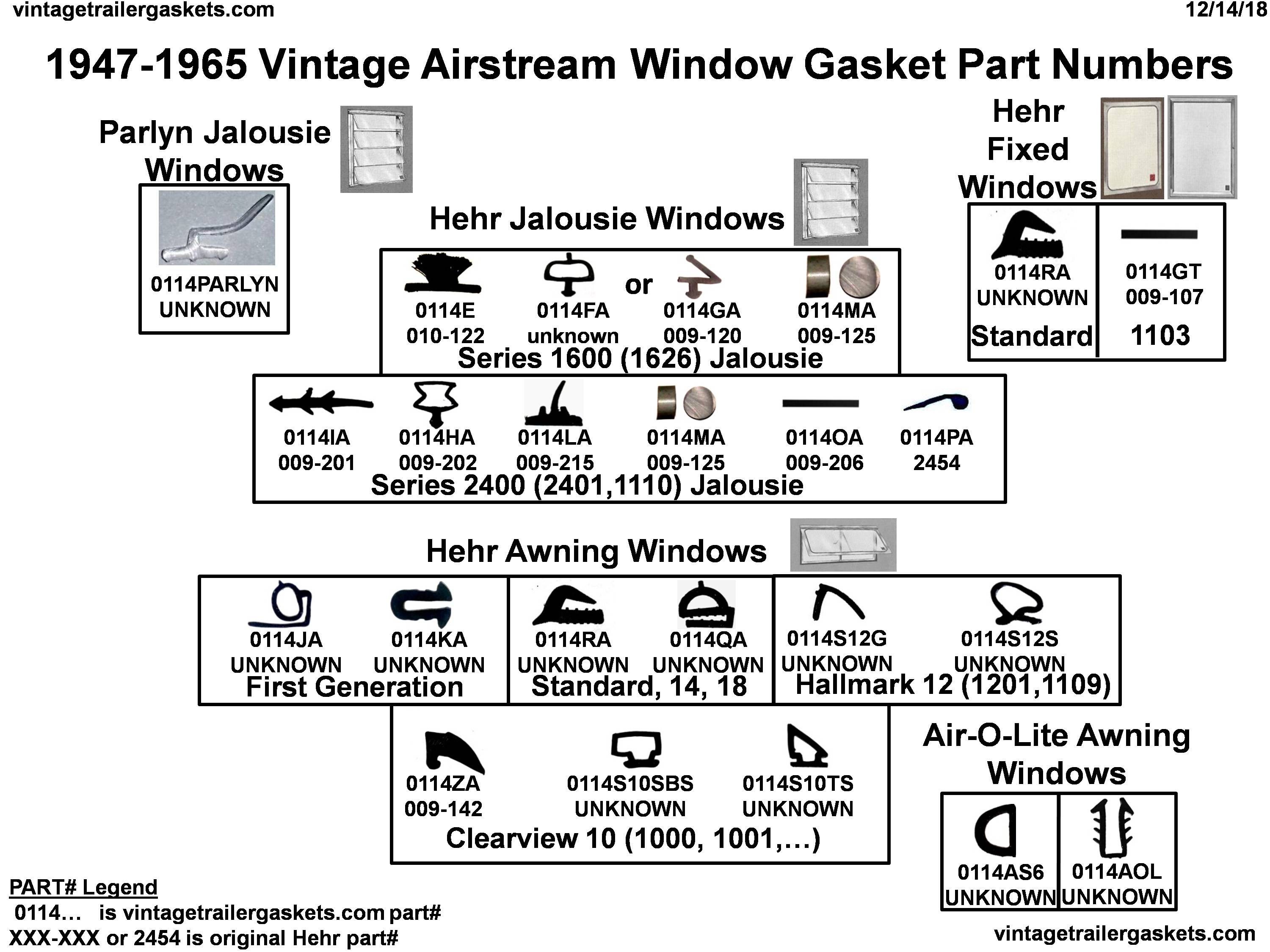

If you are restoring an Airstream trailer manufactured between 1947 and 1965, you may either search through the list below for the gaskets applicable to your model year or use the search box on the left side of this page to type in the part number.

Hehr Standard Glass Seal for Vintage Hehr Awning Windows Hehr Standard Glass Seal for Vintage Hehr Awning Windows 2
In-Stock
Vintage Trailer Gaskets

Hehr Standard Glass Seal for Vintage Hehr Awning Windows

0114RA
This standard glass seal is used on all Hehr Standard Windows. The windows were used on almost all vintage trailers in the early and mid 1950s. Our engineering team has reproduced the seal to exacting specifications taken from actual window frames and gaskets. Order 6, 12, 24, or 48 foot segments. Color: grey or black Part# 0114RA Original Hehr Part# 009-111
Hehr Standard Backframe Gasket for Vintage Hehr Awning Windows Hehr Standard Backframe Gasket for Vintage Hehr Awning Windows 2
In-Stock
Vintage Trailer Gaskets

Hehr Standard Backframe Gasket for Vintage Hehr Awning Windows

0114QA
3000This gasket was used with all Hehr Standard Windows and utility doors in the late 1940's to the 1970's. Our engineering team has reproduced the gasket to exacting specifications taken from actual window frames and gaskets. Order 6, 12, 24, or 48 foot segments. Multiiple segments shipped as one continuous piece. Color: Black Part# 0114QA Original Hehr...
Hehr Standard Window Stamped Nuts and Slot Headed Screws Hehr Standard Window Stamped Nuts and Slot Headed Screws 2
In Stock
Vintage Trailer Gaskets

Hehr Standard Window Stamped Nuts and Slot Headed Screws

0101
These specific Palnut locknuts are identical to the original nuts. They were used on Hehr Standard travel trailer windows during the 1950s and are very difficult to find in the modern world. Order packets of 12, 25, or 50 pieces. Part# 0101 original hehr Part# unknown
Hehr L-Bulb Window Seal for Vintage Hehr Awning Windows Hehr L-Bulb Window Seal for Vintage Hehr Awning Windows 2
In Stock
Vintage Trailer Gaskets

Hehr L-Bulb Window Seal for Vintage Hehr Awning Windows

0114JA
This seal is used on all Hehr, First Generation, Windows. The windows were used on many vintage trailers in the 1940's to the early 1950s. Our engineering team has reproduced the seal to exacting specifications taken from actual window frames and seals. Color: Black Part# 0114JA Original hehr Part# unknown
Hehr Glazing for Vintage Hehr Awning Windows Hehr Glazing for Vintage Hehr Awning Windows 2
In Stock
Vintage Trailer Gaskets

Hehr Glazing for Vintage Hehr Awning Windows

0114KA
Glazing was used on Generation 1 Hehr Vintage Travel Trailer Windows to hold the glass in place in the window frame. Color: Black or Grey Important: Please read the important notes below regarding installation of glass. Part#'s 0114KA (original, black), 0114KAALT332 (alternate 3/32", grey), 0114KAALT18 (alternate 1/8", grey) Original Hehr Part# unknown
Hehr 1600 1626 Pile Weatherstrip for Vintage Hehr Jalousie Windows Hehr 1600 1626 Pile Weatherstrip for Vintage Hehr Jalousie Windows 2
In Stock
Vintage Trailer Gaskets

0114E Hehr 1600 1626 Pile Weatherstrip for Vintage Hehr Jalousie Windows

0114E
Most late 50s and early 60s vintage trailers used Hehr Series 1600 1626 Jalousie windows. The plastic backing of this pile weatherstrip is identical to the width and thickness of the original aluminum-backing. Please see notes below for help in replacing the pile weatherstripping in your windows. Part# 0114E Original Hehr Part# 010-122 Sold in 25 ft rolls.
Hehr Clearview 10, 1009, Top Seal for Vintage Hehr Awning Windows Hehr Clearview 10, 1009, Top Seal for Vintage Hehr Awning Windows 2
In Stock
Vintage Trailer Gaskets

Hehr Clearview 10, 1009, Top Seal for Vintage Hehr Awning Windows

0114S10TS
This seal provides the seal along the top, between the fixed and movable parts of the Hehr Clearview 10 window. This window was used extensively in Airstream trailer windows from 1958 to 1960. Color: grey Part# 0114S10TS Original hehr Part# unknown
Hehr Hallmark 12, 1201, 1202, 1299, 1109, Window Glazing Strip for Vintage Hehr Awning Windows Hehr Hallmark 12, 1201, 1202, 1299, 1109, Window Glazing Strip for Vintage Hehr Awning Windows 2
In Stock
Vintage Trailer Gaskets

Hehr Hallmark 12, 1201, 1202, 1299, 1109, Window Glazing Strip for Vintage Hehr Awning...

0114S12G
This glazing strip is used on Hehr Hallmark 12, (1201, 1202, 1109,...) windows. We have increased the width to insure coverage of the underlying black butyl glazing tape. The windows were used extensively on Airstream trailers from 1961 until 1965. This glazing strips are compatible with both 3/32" and 1/8" glass. Color: grey Part# 0114S12G Original Hehr...

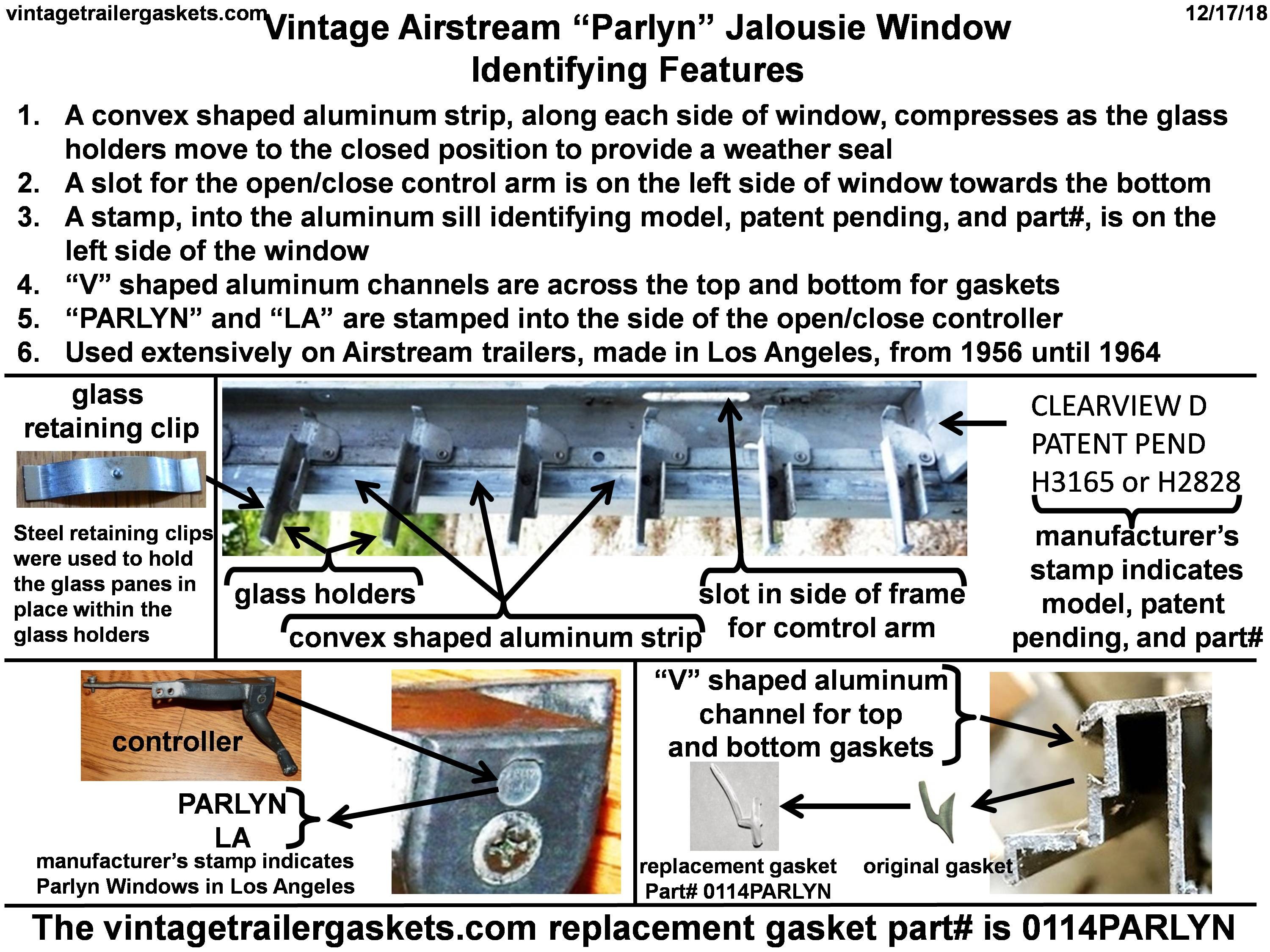

Airstream Parlyn Jalousie Top Bottom Seal Airstream Parlyn Jalousie Top Bottom Seal 2
In Stock
Vintage Trailer Gaskets

Airstream Parlyn Jalousie Top Bottom Seal

0114PARLYN
This seal was used in Jalousie windows manufactured from 1955 to 1965. The replacement seal slides into the aluminum channels that run along the top and bottom of the window frame. The company that designed and manufactured these windows is believed to Parlyn Windows.  Color: clear Part# 0114PARLYN
Air-O-Lite Vinyl Glazing Air-O-Lite Vinyl Glazing 2
Out-of-Stock
Vintage Trailer Gaskets

Air-O-Lite Vinyl Glazing

0114AOLG
This vinyl glazing gasket replaces the glazing portion of the original, combined glazing/seal gasket. The glazing is compatible with both 3/32" and 1/8" glass. Color: black Part# 0114AOLG
View
1969 to 1980 Airstream Sealant Application Guide
In Stock
Vintage Trailer Gaskets

1972 to 1986 Airstream Sealant Application Guide

0114AS8
Required as a guide to apply the secondary sealant around the perimeter of a dual pane window.The guide provides a consistent sealant surface and ensures against any air pockets between the spacer and sealant. The guide size should match the spacer thickness. When your are finished using this guide, return it for a full refund so other Airstream restorers...
Hehr 2400, 2401 Glass to Glass Seal for Hehr Jalousie Windows Hehr 2400, 2401 Glass to Glass Seal for Hehr Jalousie Windows 2
In Stock
Vintage Trailer Gaskets

Hehr 2400, 2401 Glass to Glass Seal for Hehr Jalousie Windows

0114PA
This seal slides into an aluminum channel that fits over the top of each glass pane in the 2400, 2401 Series Hehr window. It was an add-on option when the trailer was initially purchased in the 1950's. Color: grey Part# 0114PA Original Hehr Part# 2454
Glazing Tape for Vintage Hehr Windows Glazing Tape for Vintage Hehr Windows 2
In Stock
Vintage Trailer Gaskets

Butyl Glazing Tape

0114GT
Glazing tape is used to both hold a glass pane in place in an aluminum frame window and also seal against moisture. Two sizes of glazing tape were used on vintage Hehr windows. Sold in 50 ft rolls. View the note section below to determine what width your window requires.  vintagetrailershop.com Part# 0114GT original Hehr Part# 009-107
Screen Spline
In Stock
Vintage Trailer Gaskets

Screen Spline

0114S
Screen spline, .130 inch and .090 inch,  are used to hold the screen in the aluminum screen frame. Color: grey
Butyl Puddy Tape
In Stock
Vintage Trailer Gaskets

Butyl Putty Tape

0114BPT
Butyl putty tape is used to seal the interface between the window frame and the trailer skin. It adheres to both aluminum and glass surfaces. See Description below for shipping costs. Color: Grey Part# 0114BPT181 for 1/8"x1"x30' Part# 0114BPT1834 for 1/8"x3/4"x30' Part# 0114BPT1812 for 1/8"x1/2"x30' Part# 0114BPT1838 for 1/8"x3/8"x30' Part# 0114BPT11612...
Showing 1-24 of 26 item(s)
