Woodlin Glazing Seal for Vintage Woodlin Stationary Windows

In Stock
$5.25

($5.25 foot)

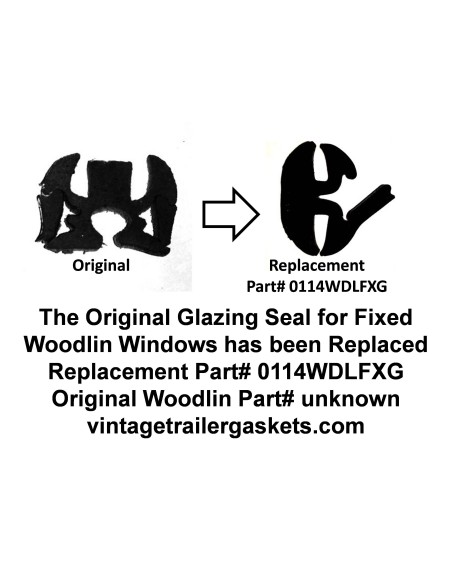

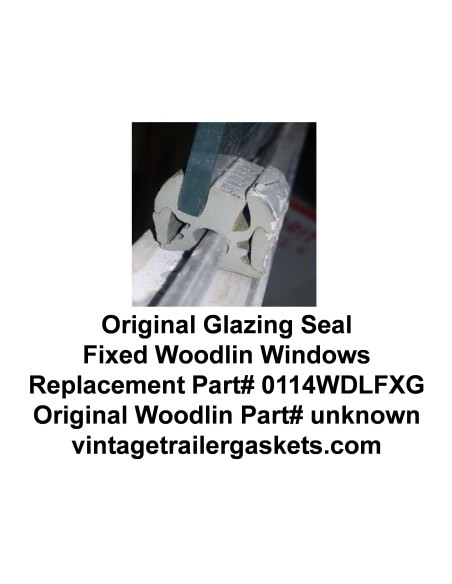

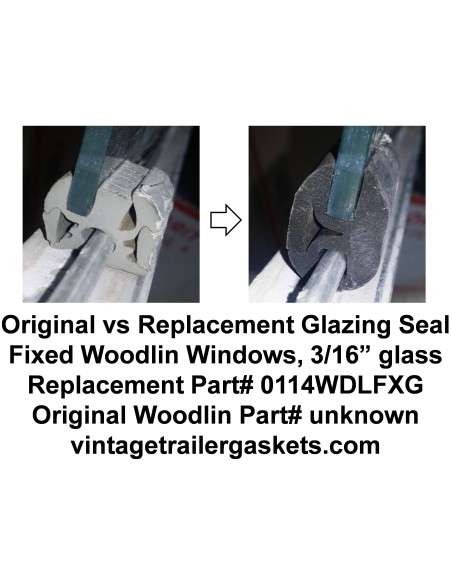

Woodlin used locking gaskets to hold the glass in place on their vintage stationary windows. The original glazing had 2 slots, one was for 1/8" glass and the other was for 3/16" glass. Our replacement locking gasket is designed for 3/16" glass only.

Color: black

Part# 0114WDLFXG



Note 1: The 2 typical window sizes were 22 inch and 31 inch. Both windows were square. The  22 inch window requires 8 feet of gasket. The 31 inch window requires 11 feet of gasket.

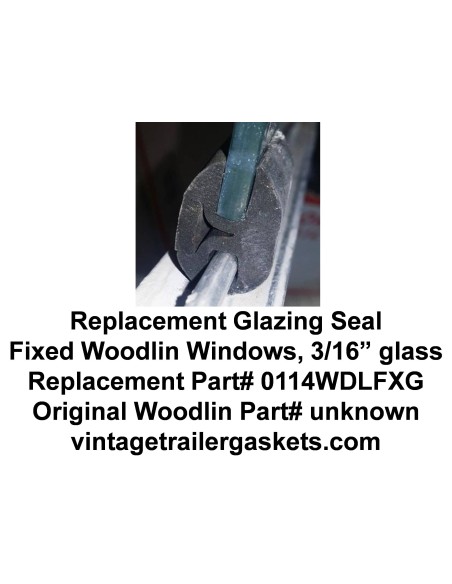

Note 2: The locking gasket requires 3/16" thick glass.

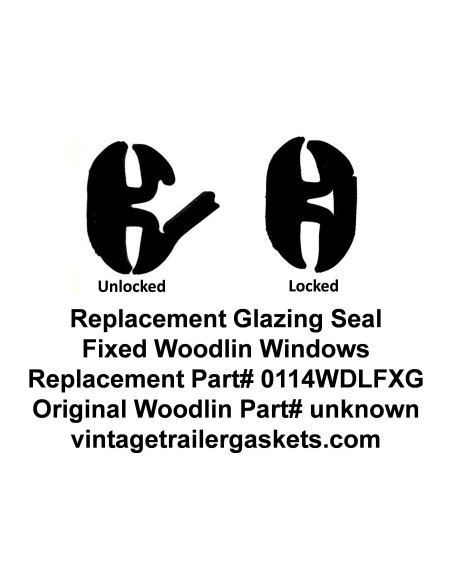

Note 3: A gasket locking tool may be required to lock the gasket in place. Part# 0114LT

Note 4: These windows were extensively used on Vagabond trailers.

Note 5: Both tracks on the original glazing were used in some cases to provide dual pane windows. This gasket does not allow for dual pane windows.

Note 6: For instructions on how to install a one piece locking gasket, select the download tab above and download "Locking Gasket Install Guide".
