Glass Alignment Guides for Snap Ring Windows
In Stock
$1.00
($1.00 package)

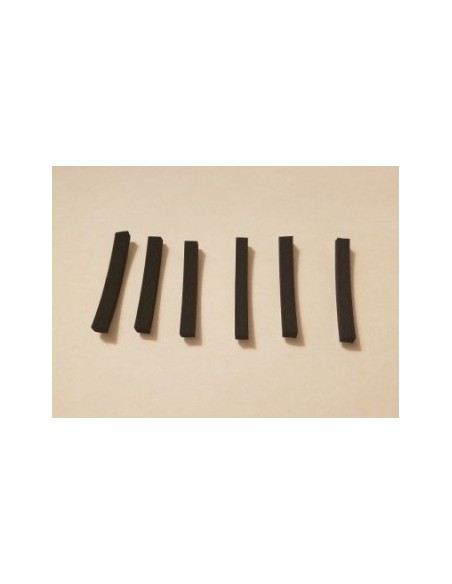

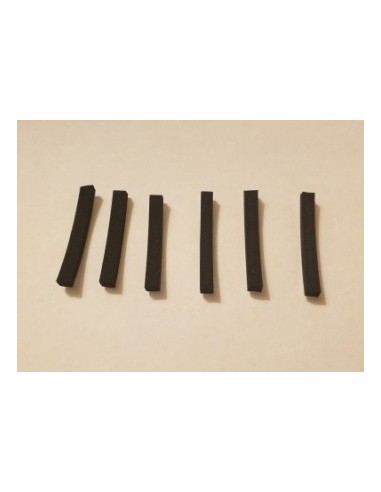

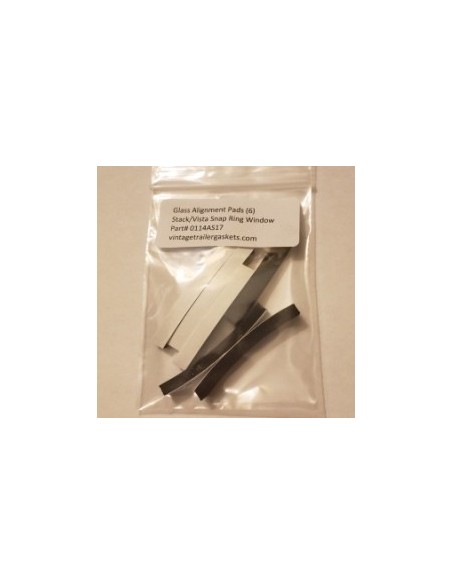

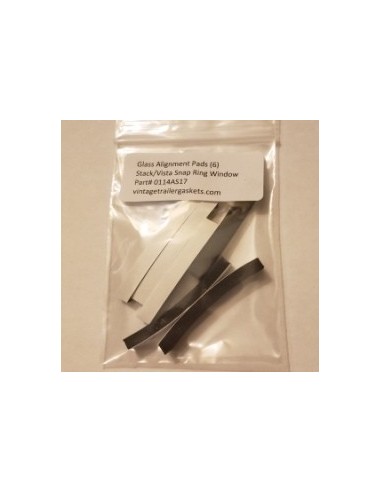

0114AS17 These rubber strips are required to center the glass pane in Stack and Vista View Windows with snap rings. The snap ring windows can be found on Airstream trailers manufactured between 1972 and 1977.
Part# 0114AS17

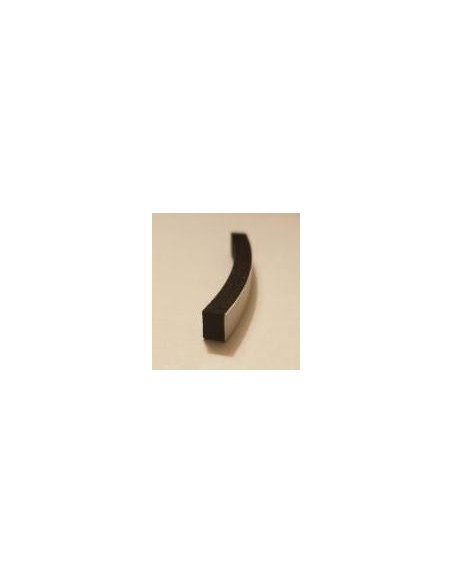

The glass alignment strips have adhesive on one side. The adhesive is used to attach the strips to the window frame. The strips will maintain the glass pane in the center of the window frame during assembly.

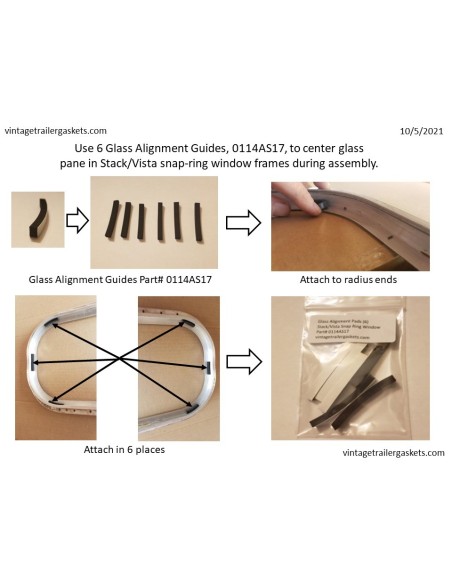

The strips must be attached to the 6 oclock, 9 oclock, and 12 oclock positions around each rounded end of the window frame. The adhesive side must be attached to the bottom of the frame channel, not the sides of the channel.
0114AS17
